Chromium-dravite

A material that is NOT an approved mineral species
This page is currently not sponsored. Click here to sponsor this page.

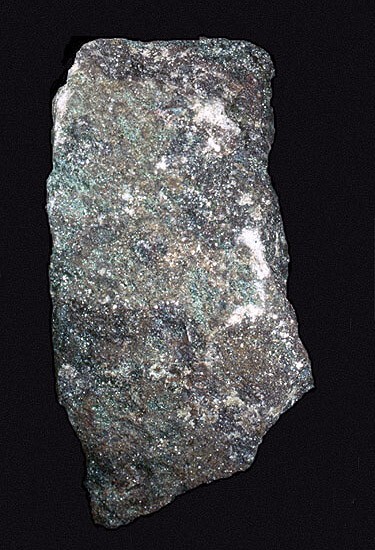

Chromium-dravite

Srednyaya Padma mine, Zaonezhie peninsula, Medvezhyegorsky District, Republic of Karelia, Russia
Chromium-dravite, etc.

Arusha Region, Tanzania
Chromium-dravite

Srednyaya Padma mine, Zaonezhie peninsula, Medvezhyegorsky District, Republic of Karelia, Russia
Chromium-dravite, etc.

Arusha Region, Tanzania
Chromium-dravite

Srednyaya Padma mine, Zaonezhie peninsula, Medvezhyegorsky District, Republic of Karelia, Russia
Chromium-dravite, etc.

Arusha Region, Tanzania
Hide all sections | Show all sections

About Chromium-draviteHide

Formula:
NaMg3Cr3+6(Si6O18)(BO3)3(OH)3(OH)
Colour:
Dark emerald-green to greenish-black.
Lustre:
Vitreous, Resinous
Hardness:
7 - 7½
Crystal System:
Trigonal
Name:
For being the chromium analogue of dravite.
Tourmaline Group. The Cr3+ analogue of Dravite.

Originally named chromdravite (Rumantseva, 1983).

A detailed study by Vereshchagin et al. (2010) and Rozhdestvenskaya et al. (2011) strongly suggests that the "ideal" formula of chromdravite, NaMg3Cr6(BO3)3(Si6O18)(OH)4, is not realistic and should in fact be Na(Cr2Mg)(Cr4Mg2)(BO3)3(Si6O18)(OH)4 (Cr-Mg disorder on both Y and Z sites, leading to a more stable structure.)


Unique IdentifiersHide

Mindat ID:
1031
Long-form identifier:
mindat:1:1:1031:9
GUID
(UUID V4):
357611f8-7db2-47c3-a2b7-7a66d6a757ec

IMA Classification of Chromium-draviteHide

IMA status notes:
Published without approval
Approval history:
Published without approval: 2009

Classification of Chromium-draviteHide

Strunz-mindat (2024):
9.CK.05

9 : SILICATES (Germanates)
C : Cyclosilicates
K : [Si6O18]12- 6-membered single rings, with insular complex anions
Dana 7th ed.:
61.3.1.13
Dana 8th ed.:
61.3.1.11

61 : CYCLOSILICATES Six-Membered Rings
3 : Six-Membered Rings with borate groups
Hey's CIM Ref.:
17.5.37

17 : Silicates Containing other Anions
5 : Borosilicates

Mineral SymbolsHide

As of 2021 there are now IMA–CNMNC approved mineral symbols (abbreviations) for each mineral species, useful for tables and diagrams.

SymbolSourceReference
CdrvIMA–CNMNCWarr, L.N. (2021). IMA–CNMNC approved mineral symbols. Mineralogical Magazine, 85(3), 291-320. doi:10.1180/mgm.2021.43

Physical Properties of Chromium-draviteHide

Lustre:
Vitreous, Resinous
Colour:
Dark emerald-green to greenish-black.
Streak:
Greyish-green.
Hardness:
7 - 7½ on Mohs scale

Optical Data of Chromium-draviteHide

Type:
Uniaxial (-)
RI values:
nω = 1.778 nε = 1.772
Max Birefringence:
δ = 0.006
Image shows birefringence interference colour range (at 30µm thickness)
and does not take into account mineral colouration.
Surface Relief:
Very High

Chemistry of Chromium-draviteHide

Mindat Formula:
NaMg3Cr3+6(Si6O18)(BO3)3(OH)3(OH)
Elements listed:
B, Cr, H, Mg, Na, O, Si - search for minerals with similar chemistry
Common Impurities:
Mn,Ti,V,Al,V,Ca

Crystallography of Chromium-draviteHide

Crystal System:
Trigonal
Class (H-M):
3m - Ditrigonal Pyramidal
Space Group:
R3m
Cell Parameters:
a = 16.11 Å, c = 7.27 Å
Ratio:
a:c = 1 : 0.451
Unit Cell V:
1,634.02 ų (Calculated from Unit Cell)
Z:
3

Geological EnvironmentHide

Paragenetic Mode(s):
Paragenetic ModeEarliest Age (Ga)
Near-surface Processes
23 : Subaerial aqueous alteration by non-redox-sensitive fluids (see also #47)
High-𝑇 alteration and/or metamorphism
31 : Thermally altered carbonate, phosphate, and iron formations

First Recorded Occurrence of Chromium-draviteHide

Synonyms of Chromium-draviteHide

Other Language Names for Chromium-draviteHide

Simplified Chinese:铬镁电气石
Spanish:Cromdravita
Traditional Chinese:鉻鎂電氣石

Relationship of Chromium-dravite to other SpeciesHide

Member of:
Tourmaline Group
Other Members of this group:
AdachiiteCaFe3Al6(Si5AlO18)(BO3)3(OH)3(OH)Trig. 3m : R3m
Alumino-oxy-rossmanite◻Al3Al6(Si5AlO18)(BO3)3(OH)3OTrig. 3m : R3m
BosiiteNaFe3+3(Al4Mg2)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
Celleriite◻(Mn2+2Al)Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
Chromo-alumino-povondraiteNaCr3(Al4Mg2)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
DarrellhenryiteNa(Al2Li)Al6(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
DraviteNaMg3Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
DutrowiteNa(Fe2+2.5Ti0.5)Al6(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
ElbaiteNa(Li1.5Al1.5)Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
Ferro-bosiiteNaFe3+3(Al4Fe2+2)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
FeruviteCaFe2+3(Al5Mg)(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
Fluor-buergeriteNaFe3+3Al6(Si6O18)(BO3)3O3FTrig. 3m : R3m
Fluor-draviteNaMg3Al6(Si6O18)(BO3)3(OH)3FTrig. 3m : R3m
Fluor-elbaiteNa(Li1.5Al1.5)Al6(Si6O18)(BO3)3(OH)3FTrig. 3m : R3m
Fluor-liddicoatiteCa(Li2Al)Al6(Si6O18)(BO3)3(OH)3FTrig. 3m : R3m
Fluor-rossmanite◻(Al2Li)Al6(Si6O18)(BO3)3(OH)3FTrig. 3m (3 2/m) : R3m
Fluor-schorlNaFe2+3Al6(Si6O18)(BO3)3(OH)3FTrig. 3m : R3m
Fluor-tsilaisiteNaMn2+3Al6(Si6O18)(BO3)3(OH)3FTrig. 3m : R3m
Fluor-uviteCaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3FTrig. 3m : R3m
Foitite◻(Fe2+2Al)Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
LiddicoatiteCa(Li2Al)Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
LucchesiiteCaFe2+3 Al6(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
Magnesio-dutrowiteNa(Mg2.5Ti0.5)Al6(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
Magnesio-foitite◻(Mg2Al)Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
Magnesio-lucchesiiteCaMg3Al6(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
MaruyamaiteK(Al2Mg)(Al5Mg)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
OleniteNaAl3Al6(Si6O18)(BO3)3O3(OH)Trig. 3m : R3m
Oxy-chromium-draviteNaCr3(Cr4Mg2)(Si6O18)(BO3)3(OH)3O Trig. 3m : R3m
Oxy-draviteNa(Al2Mg)(Al5Mg)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
Oxy-foitite◻(Fe2+Al2)Al6(Si6O18)(BO3)3(OH)3OTrig. 3m (3 2/m) : R3m
Oxy-rossmanite◻(Li0.5Al2.5)Al6(Si6O18)(BO3)3(OH)3O
Oxy-schorlNa(Fe2+2Al)Al6(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
Oxy-uviteCaMg3Al6(Si6O18)(BO3)3(OH)3O
Oxy-vanadium-draviteNaV3(V4Mg2)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
PovondraiteNaFe3+3(Mg2Fe3+4)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
PrincivalleiteNa(Mn2Al)Al6(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
Rossmanite◻(LiAl2)Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
SchorlNaFe2+3Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
TsilaisiteNaMn2+3Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
UM2000-64-SiO:BFeHKMg(K,Na)Fe3+3(Mg2Fe3+4)Si6O18(BO3)3(OH)3O
UM2008-52-SiO:AlBCaFFeHLiMgNa(Ca,Na,◻)(Al,Li,Fe,Mg)3Al6[Si6O18](BO3)3(OH,O)3(F,O)
Unnamed (F analogue of feruvite)CaFe2+3(Al5Mg)(Si6O18)(BO3)3(OH)3F
Unnamed (Pb-analogue of Fluor-liddicoatite)Pb(Li2Al)Al6(Si6O18)(BO3)3(OH)3F
UviteCaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
Vanadio-oxy-chromium-draviteNaV3(Cr4Mg2)(Si6O18)(BO3)3(OH)3O Trig. 3m : R3m
Vanadio-oxy-draviteNaV3(Al4Mg2)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m

Common AssociatesHide

Associated Minerals Based on Photo Data:
1 photo of Chromium-dravite associated with CalciteCaCO3

Related Minerals - Strunz-mindat GroupingHide

9.CK.Fluor-schorlNaFe2+3Al6(Si6O18)(BO3)3(OH)3FTrig. 3m : R3m
9.CK.DarrellhenryiteNa(Al2Li)Al6(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.AdachiiteCaFe3Al6(Si5AlO18)(BO3)3(OH)3(OH)Trig. 3m : R3m
9.CK.BosiiteNaFe3+3(Al4Mg2)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.DutrowiteNa(Fe2+2.5Ti0.5)Al6(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.Celleriite◻(Mn2+2Al)Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
9.CK.PrincivalleiteNa(Mn2Al)Al6(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.Alumino-oxy-rossmanite◻Al3Al6(Si5AlO18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.Ferro-bosiiteNaFe3+3(Al4Fe2+2)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.Magnesio-dutrowiteNa(Mg2.5Ti0.5)Al6(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.05Fluor-buergeriteNaFe3+3Al6(Si6O18)(BO3)3O3FTrig. 3m : R3m
9.CK.05DraviteNaMg3Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
9.CK.05ElbaiteNa(Li1.5Al1.5)Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
9.CK.05FeruviteCaFe2+3(Al5Mg)(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
9.CK.05Foitite◻(Fe2+2Al)Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
9.CK.05LiddicoatiteCa(Li2Al)Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
9.CK.05OleniteNaAl3Al6(Si6O18)(BO3)3O3(OH)Trig. 3m : R3m
9.CK.05PovondraiteNaFe3+3(Mg2Fe3+4)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.05SchorlNaFe2+3Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
9.CK.05Magnesio-foitite◻(Mg2Al)Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
9.CK.05Rossmanite◻(LiAl2)Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
9.CK.05TsilaisiteNaMn2+3Al6(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
9.CK.05Oxy-vanadium-draviteNaV3(V4Mg2)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.05Oxy-draviteNa(Al2Mg)(Al5Mg)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.05Oxy-rossmanite◻(Li0.5Al2.5)Al6(Si6O18)(BO3)3(OH)3O
9.CK.05Luinaite-(OH)NaFe2+3Al6(Si6O18)(BO3)3(OH)3(OH)Mon. m : Bm
9.CK.05Fluor-elbaiteNa(Li1.5Al1.5)Al6(Si6O18)(BO3)3(OH)3FTrig. 3m : R3m
9.CK.05Chromo-alumino-povondraiteNaCr3(Al4Mg2)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.05Fluor-draviteNaMg3Al6(Si6O18)(BO3)3(OH)3FTrig. 3m : R3m
9.CK.05Oxy-schorlNa(Fe2+2Al)Al6(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.05Fluor-liddicoatiteCa(Li2Al)Al6(Si6O18)(BO3)3(OH)3FTrig. 3m : R3m
9.CK.05Unnamed (F analogue of feruvite)CaFe2+3(Al5Mg)(Si6O18)(BO3)3(OH)3F
9.CK.05UM2000-64-SiO:BFeHKMg(K,Na)Fe3+3(Mg2Fe3+4)Si6O18(BO3)3(OH)3O
9.CK.05Oxy-chromium-draviteNaCr3(Cr4Mg2)(Si6O18)(BO3)3(OH)3O Trig. 3m : R3m
9.CK.05Fluor-tsilaisiteNaMn2+3Al6(Si6O18)(BO3)3(OH)3FTrig. 3m : R3m
9.CK.05Vanadio-oxy-chromium-draviteNaV3(Cr4Mg2)(Si6O18)(BO3)3(OH)3O Trig. 3m : R3m
9.CK.05Fluor-uviteCaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3FTrig. 3m : R3m
9.CK.05Vanadio-oxy-draviteNaV3(Al4Mg2)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.05MaruyamaiteK(Al2Mg)(Al5Mg)(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.05LucchesiiteCaFe2+3 Al6(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.05Oxy-foitite◻(Fe2+Al2)Al6(Si6O18)(BO3)3(OH)3OTrig. 3m (3 2/m) : R3m
9.CK.05Oxy-uviteCaMg3Al6(Si6O18)(BO3)3(OH)3O
9.CK.05Magnesio-lucchesiiteCaMg3Al6(Si6O18)(BO3)3(OH)3OTrig. 3m : R3m
9.CK.05UviteCaMg3(Al5Mg)(Si6O18)(BO3)3(OH)3(OH)Trig. 3m : R3m
9.CK.05Fluor-rossmanite◻(Al2Li)Al6(Si6O18)(BO3)3(OH)3FTrig. 3m (3 2/m) : R3m
9.CK.10Abenakiite-(Ce)Na26Ce6(Si6O18)(PO4)6(CO3)6(SO2)OTrig. 3 : R3
9.CK.15ScawtiteCa7(Si3O9)2CO3 · 2H2OMon. 2/m
9.CK.20Steenstrupine-(Ce)Na14Mn2+2Fe3+2Ce6Zr(Si6O18)2(PO4)6(PO3OH)(OH)2 · 2H2OTrig. 3m (3 2/m) : R3m
9.CK.20Thorosteenstrupine(Ca,Th,Mn)3Si4O11F · 6H2O

Other InformationHide

Health Risks:
No information on health risks for this material has been entered into the database. You should always treat mineral specimens with care.

Internet Links for Chromium-draviteHide

References for Chromium-draviteHide

Reference List:
Dunn, Pete J. (1977) Chromium in dravite. Mineralogical Magazine, 41 (319) 408-410 doi:10.1180/minmag.1977.041.319.21
Rumantseva, E.V. (1983): Chromdravite, a new mineral. Zap. Vses. Mineral. Obshch., 112, 222-226 (in Russian). [Abs. in American Mineralogist 69 (1984) 210].
Grew, Edward S., Anovitz, Lawrence M., Grew, Edward S., Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America
Bosi, Ferdinando, Lucchesi, Sergio, Reznitskii, Leonid (2004) Crystal chemistry of the dravite-chromdravite series. European Journal of Mineralogy, 16 (2) 345-352 doi:10.1127/0935-1221/2004/0016-0345
Vereshchagin, O.S., Rozhdestvenskaya, I.V., Frank-Kamenetskaya, O.V. & Zolotarev, A.A. (2010): Crystal chemistry and the nomenclature of chromium-bearing tourmalines. 20th General Meeting of the IMA (IMA2010), Budapest, Hungary, August 21-27, CD of Abstracts, p. 710.
Henry, D. J., Novak, M., Hawthorne, F. C., Ertl, A., Dutrow, B. L., Uher, P., Pezzotta, F. (2011) Nomenclature of the tourmaline-supergroup minerals. American Mineralogist, 96 (5) 895-913 doi:10.2138/am.2011.3636
Rozhdestvenskaya, I. V.; Vereshchagin, O. S.; Frank-Kamenetskaya, O. V.; Zolotarev, A. A.; Pekov, I. V. (2011): About crystal-chemical formula of chromdravite - mineral species from the tourmaline group. Zapiski Rossiiskogo Mineralogicheskogo Obshchestva (Proceedings of the Russian Mineralogical Society) 140, 93-99 (in Russian).
Vereshchagin, Oleg S., Rozhdestvenskaya, Ira V., Frank-Kamenetskaya, Olga V., Zolotarev, Anatoly A. (2014) Ion substitutions and structural adjustment in Cr-bearing tourmalines. European Journal of Mineralogy, 26 (2) 309-321 doi:10.1127/0935-1221/2014/0026-2372

Localities for Chromium-draviteHide

This map shows a selection of localities that have latitude and longitude coordinates recorded. Click on the symbol to view information about a locality. The symbol next to localities in the list can be used to jump to that position on the map.

Locality ListHide

- This locality has map coordinates listed. - This locality has estimated coordinates. ⓘ - Click for references and further information on this occurrence. ? - Indicates mineral may be doubtful at this locality. - Good crystals or important locality for species. - World class for species or very significant. (TL) - Type Locality for a valid mineral species. (FRL) - First Recorded Locality for everything else (eg varieties). Struck out - Mineral was erroneously reported from this locality. Faded * - Never found at this locality but inferred to have existed at some point in the past (e.g. from pseudomorphs).

All localities listed without proper references should be considered as questionable.
Brazil

  • Minas Gerais
    • Coronel Murta
erroneously reported [MinRec 33:209]
Canada

  • Québec
    • Nord-du-Québec
      • Baie-James
        • Otish Mountains
Alexandre et al. (2014)
Finland

  • North Savo
    • Kaavi
 ...
India

  • Odisha
    • Keonjhar District
- (see explanation under chromoaluminopovondraite)
Pakistan

  • Khyber Pakhtunkhwa Province
    • Swat District
- (2002)
Russia

  • Irkutsk Oblast
    • Lake Baikal area
      • Slyudyanka
        • Pokhabikha River Valley
Pekov (1998)
  • Republic of Karelia
    • Medvezhyegorsky District
      • Zaonezhie peninsula
Jeff Weissman collection (purchased from Excalibur Mineral Company)
Pekov (1998)
USA

  • New York
    • St. Lawrence County
      • Balmat-Edwards Zinc Mining District
        • Balmat
Marian Lupulescu (New York State Museum)
Quick NavTopAbout Chromium-draviteUnique IdentifiersIMA Classification Classification Mineral SymbolsPhysical Properties Optical Data Chemistry Crystallography Geological EnvironmentFirst Recorded Occurrence SynonymsOther LanguagesRelationshipsCommon AssociatesStrunz-MindatOther InformationInternet Links References Localities Locality List

Mineral and/or Locality
Mindat Discussions Facebook Logo Instagram Logo Discord Logo
Mindat.org is an outreach project of the Hudson Institute of Mineralogy, a 501(c)(3) not-for-profit organization.
Copyright © mindat.org and the Hudson Institute of Mineralogy 1993-2024, except where stated. Most political location boundaries are © OpenStreetMap contributors. Mindat.org relies on the contributions of thousands of members and supporters. Founded in 2000 by Jolyon Ralph.
Privacy Policy - Terms & Conditions - Contact Us / DMCA issues - Report a bug/vulnerability Current server date and time: April 29, 2024 05:52:59 Page updated: April 13, 2024 15:05:23
Go to top of page
