Pigeonite
A valid IMA mineral species - grandfathered
This page is currently not sponsored. Click here to sponsor this page.
About Pigeonite
Formula:
(CaxMgyFez)(Mgy1Fez1)Si2O6
Where 0.1 ≤ x ≤ 0.4, x + y + z = 1 and y1 + z1 = 1.
This formula is based on the definition by Morimoto et al. (1988).
This formula is based on the definition by Morimoto et al. (1988).
Colour:
black, brown, greenish brown
Lustre:
Vitreous, Dull
Hardness:
6
Crystal System:
Monoclinic
Member of:
Name:
Named in 1900 by Alexander N. Winchell for the type locality of Pigeon Point, Minnesota, USA.
Type Locality:
Pyroxene Group, Clinopyroxene Subgroup.
A high-temperature mineral, forming mostly above 900°C, and with slow cooling tends to invert to a mixture of augite and orthopyroxene. Thus it is mostly restricted to volcanic and subvolcanic rocks like basalts and dolerites.
Unlike other clinopyroxenes such as augite and diopside, pigeonite has space-group symmetry P21/c at room temperature (at high temperatures it has space group C2/c). The phase-transition temperature depends on Ca and Fe2+ contents, as well as by cation ordering (Camara et al., 2003).
A high-temperature mineral, forming mostly above 900°C, and with slow cooling tends to invert to a mixture of augite and orthopyroxene. Thus it is mostly restricted to volcanic and subvolcanic rocks like basalts and dolerites.
Unlike other clinopyroxenes such as augite and diopside, pigeonite has space-group symmetry P21/c at room temperature (at high temperatures it has space group C2/c). The phase-transition temperature depends on Ca and Fe2+ contents, as well as by cation ordering (Camara et al., 2003).
Unique Identifiers
Mindat ID:
3210
Long-form identifier:
mindat:1:1:3210:6
GUID
(UUID V4):
(UUID V4):
49139fc3-2d80-4ad7-80e2-91eb3c03e7af
Classification of Pigeonite

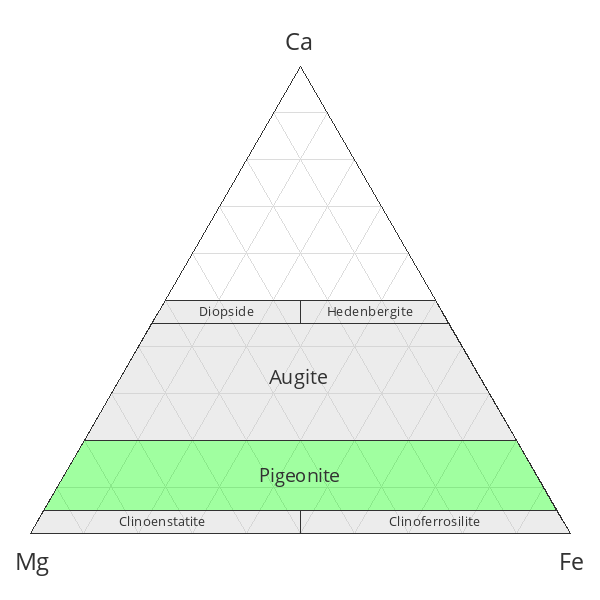

Pigeonite and its relation to other pyroxenes
IMA Classification of Pigeonite
Approved, 'Grandfathered' (first described prior to 1959)
IMA Formula:
(Mg,Fe,Ca)2Si2O6
9.DA.10
9 : SILICATES (Germanates)
D : Inosilicates
A : Inosilicates with 2-periodic single chains, Si2O6; pyroxene family
9 : SILICATES (Germanates)
D : Inosilicates
A : Inosilicates with 2-periodic single chains, Si2O6; pyroxene family
65.1.1.4
65 : INOSILICATES Single-Width,Unbranched Chains,(W=1)
1 : Single-Width Unbranched Chains, W=1 with chains P=2
65 : INOSILICATES Single-Width,Unbranched Chains,(W=1)
1 : Single-Width Unbranched Chains, W=1 with chains P=2
14.23.1
14 : Silicates not Containing Aluminum
23 : Silicates of Fe, Mg, Ca
14 : Silicates not Containing Aluminum
23 : Silicates of Fe, Mg, Ca
Mineral Symbols
As of 2021 there are now IMA–CNMNC approved mineral symbols (abbreviations) for each mineral species, useful for tables and diagrams.
Please only use the official IMA–CNMNC symbol. Older variants are listed for historical use only.
Please only use the official IMA–CNMNC symbol. Older variants are listed for historical use only.
Symbol | Source | Reference |
---|---|---|
Pgt | IMA–CNMNC | Warr, L.N. (2021). IMA–CNMNC approved mineral symbols. Mineralogical Magazine, 85(3), 291-320. doi:10.1180/mgm.2021.43 |
Pgt | Kretz (1983) | Kretz, R. (1983) Symbols of rock-forming minerals. American Mineralogist, 68, 277–279. |
Pgt | Siivolam & Schmid (2007) | Siivolam, J. and Schmid, R. (2007) Recommendations by the IUGS Subcommission on the Systematics of Metamorphic Rocks: List of mineral abbreviations. Web-version 01.02.07. IUGS Commission on the Systematics in Petrology. download |
Pgt | Whitney & Evans (2010) | Whitney, D.L. and Evans, B.W. (2010) Abbreviations for names of rock-forming minerals. American Mineralogist, 95, 185–187 doi:10.2138/am.2010.3371 |
Pgt | The Canadian Mineralogist (2019) | The Canadian Mineralogist (2019) The Canadian Mineralogist list of symbols for rock- and ore-forming minerals (December 30, 2019). download |
Pronunciation of Pigeonite
Pronunciation:
Play | Recorded by | Country |
---|---|---|
Jolyon Ralph | United Kingdom |
Physical Properties of Pigeonite
Vitreous, Dull
Colour:
black, brown, greenish brown
Streak:
greyish white
Hardness:
6 on Mohs scale
Cleavage:
Distinct/Good
Optical Data of Pigeonite
Type:
Biaxial (+)
RI values:
nα = 1.683 - 1.722 nβ = 1.684 - 1.722 nγ = 1.704 - 1.752
Max Birefringence:
δ = 0.021 - 0.030
Image shows birefringence interference colour range (at 30µm thickness)
and does not take into account mineral colouration.
and does not take into account mineral colouration.
Surface Relief:
High
Dispersion:
weak to distinct
Chemistry of Pigeonite
Mindat Formula:
(CaxMgyFez)(Mgy1Fez1)Si2O6
Where 0.1 ≤ x ≤ 0.4, x + y + z = 1 and y1 + z1 = 1.
This formula is based on the definition by Morimoto et al. (1988).
Where 0.1 ≤ x ≤ 0.4, x + y + z = 1 and y1 + z1 = 1.
This formula is based on the definition by Morimoto et al. (1988).
Common Impurities:
Ti,Al,Mn,Na,K,H2O
Crystallography of Pigeonite
Crystal System:
Monoclinic
Class (H-M):
2/m - Prismatic
Space Group:
P21/b
Setting:
P1 21/c 1
Cell Parameters:
a = 9.7 Å, b = 8.95 Å, c = 5.24 Å
β = 108.59°
β = 108.59°
Ratio:
a:b:c = 1.084 : 1 : 0.585
Unit Cell V:
431.18 ų (Calculated from Unit Cell)
Crystal Structure
Load
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Unit Cell | Unit Cell Packed
2x2x2 | 3x3x3 | 4x4x4
Show
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Big Balls | Small Balls | Just Balls | Spacefill
Polyhedra Off | Si Polyhedra | All Polyhedra
Remove metal-metal sticks
Display Options
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
Black Background | White Background
Perspective On | Perspective Off
2D | Stereo | Red-Blue | Red-Cyan
View
CIF File Best | x | y | z | a | b | c
CIF File Best | x | y | z | a | b | c
Rotation
Stop | Start
Stop | Start
Labels
Console Off | On | Grey | Yellow
Console Off | On | Grey | Yellow
Data courtesy of the American Mineralogist Crystal Structure Database. Click on an AMCSD ID to view structure
ID | Species | Reference | Link | Year | Locality | Pressure (GPa) | Temp (K) |
---|---|---|---|---|---|---|---|
0000209 | Pigeonite | Morimoto N, Guven N (1970) Refinement of the crystal structure of pigeonite American Mineralogist 55 1195-1209 | 1970 | Isle of Mull, Scotland | 0 | 293 | |
0000248 | Pigeonite | Clark J R, Ross M, Appleman D E (1971) Crystal chemistry of a lunar pigeonite class b data refinement American Mineralogist 56 888-908 | 1971 | 0 | 293 | ||
0003147 | Pigeonite | Camara F, Carpenter M A, Domeneghetti M C, Tazzoli V (2003) Coupling between non-convergent ordering and transition temperature in the C2/c - P2_1/c phase transition in pigeonite American Mineralogist 88 1115-1128 | 2003 | Parana, Brazil | 0 | 293 | |
0003148 | Pigeonite | Camara F, Carpenter M A, Domeneghetti M C, Tazzoli V (2003) Coupling between non-convergent ordering and transition temperature in the C2/c - P2_1/c phase transition in pigeonite American Mineralogist 88 1115-1128 | 2003 | Parana, Brazil | 0 | 293 | |
0003149 | Pigeonite | Camara F, Carpenter M A, Domeneghetti M C, Tazzoli V (2003) Coupling between non-convergent ordering and transition temperature in the C2/c - P2_1/c phase transition in pigeonite American Mineralogist 88 1115-1128 | 2003 | Parana, Brazil | 0 | 293 | |
0003150 | Pigeonite | Camara F, Carpenter M A, Domeneghetti M C, Tazzoli V (2003) Coupling between non-convergent ordering and transition temperature in the C2/c - P2_1/c phase transition in pigeonite American Mineralogist 88 1115-1128 | 2003 | Parana, Brazil | 0 | 293 | |
0003151 | Pigeonite | Camara F, Carpenter M A, Domeneghetti M C, Tazzoli V (2003) Coupling between non-convergent ordering and transition temperature in the C2/c - P2_1/c phase transition in pigeonite American Mineralogist 88 1115-1128 | 2003 | Parana, Brazil | 0 | 293 | |
0003152 | Pigeonite | Camara F, Carpenter M A, Domeneghetti M C, Tazzoli V (2003) Coupling between non-convergent ordering and transition temperature in the C2/c - P2_1/c phase transition in pigeonite American Mineralogist 88 1115-1128 | 2003 | Parana, Brazil | 0 | 293 | |
0003197 | Pigeonite | Nestola F, Tribaudino M, Ballaran T B (2004) High pressure behavior, transformation and crystal structure of synthetic iron-free pigeonite American Mineralogist 89 189-196 | 2004 | 0 | 293 | ||
0003198 | Pigeonite | Nestola F, Tribaudino M, Ballaran T B (2004) High pressure behavior, transformation and crystal structure of synthetic iron-free pigeonite American Mineralogist 89 189-196 | 2004 | 2.6 | 293 | ||
0003199 | Pigeonite | Nestola F, Tribaudino M, Ballaran T B (2004) High pressure behavior, transformation and crystal structure of synthetic iron-free pigeonite American Mineralogist 89 189-196 | 2004 | 4.5 | 293 | ||
0003200 | Pigeonite | Nestola F, Tribaudino M, Ballaran T B (2004) High pressure behavior, transformation and crystal structure of synthetic iron-free pigeonite American Mineralogist 89 189-196 | 2004 | 6.2 | 293 | ||
0003962 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 293 | |
0003963 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 973 | |
0003964 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 973 | |
0003965 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 973 | |
0003966 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 973 | |
0003967 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 973 | |
0003968 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 973 | |
0003969 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 973 | |
0003970 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 973 | |
0003971 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 973 | |
0003972 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 1073 | |
0003973 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 1073 | |
0003974 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 1073 | |
0003975 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 1073 | |
0003976 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 1073 | |
0003977 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 1073 | |
0003978 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 293 | |
0003979 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 923 | |
0003980 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 923 | |
0003981 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 923 | |
0003982 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 923 | |
0003983 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 923 | |
0003984 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 923 | |
0003985 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 923 | |
0003986 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 923 | |
0003987 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 1023 | |
0003988 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 1023 | |
0003989 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 1023 | |
0003990 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 1023 | |
0003991 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 1023 | |
0003992 | Pigeonite | Domeneghetti M C, Zema M, Tazzoli V (2005) Kinetics of Fe2+-Mg order-disorder in P2_1/c pigeonite American Mineralogist 90 1816-1823 | 2005 | Parana, Brazil | 0 | 1023 | |
0005003 | Pigeonite | Alvaro M, Nestola F, Ballaran T B, Camara F, Domeneghetti M C, Tazzoli V (2010) High-pressure phase transition of a natural pigeonite American Mineralogist 95 300-311 | 2010 | Parana, Brazil | 0.0001 | 293 | |
0005004 | Pigeonite | Alvaro M, Nestola F, Ballaran T B, Camara F, Domeneghetti M C, Tazzoli V (2010) High-pressure phase transition of a natural pigeonite American Mineralogist 95 300-311 | 2010 | Parana, Brazil | 0.047 | 293 | |
0005005 | Pigeonite | Alvaro M, Nestola F, Ballaran T B, Camara F, Domeneghetti M C, Tazzoli V (2010) High-pressure phase transition of a natural pigeonite American Mineralogist 95 300-311 | 2010 | Parana, Brazil | 0.984 | 293 | |
0005006 | Pigeonite | Alvaro M, Nestola F, Ballaran T B, Camara F, Domeneghetti M C, Tazzoli V (2010) High-pressure phase transition of a natural pigeonite American Mineralogist 95 300-311 | 2010 | Parana, Brazil | 1.794 | 293 | |
0005007 | Pigeonite | Alvaro M, Nestola F, Ballaran T B, Camara F, Domeneghetti M C, Tazzoli V (2010) High-pressure phase transition of a natural pigeonite American Mineralogist 95 300-311 | 2010 | Parana, Brazil | 3.167 | 293 | |
0005008 | Pigeonite | Alvaro M, Nestola F, Ballaran T B, Camara F, Domeneghetti M C, Tazzoli V (2010) High-pressure phase transition of a natural pigeonite American Mineralogist 95 300-311 | 2010 | Parana, Brazil | 3.172 | 293 | |
0005009 | Pigeonite | Alvaro M, Nestola F, Ballaran T B, Camara F, Domeneghetti M C, Tazzoli V (2010) High-pressure phase transition of a natural pigeonite American Mineralogist 95 300-311 | 2010 | Parana, Brazil | 3.587 | 293 | |
0005010 | Pigeonite | Alvaro M, Nestola F, Ballaran T B, Camara F, Domeneghetti M C, Tazzoli V (2010) High-pressure phase transition of a natural pigeonite American Mineralogist 95 300-311 | 2010 | Parana, Brazil | 3.649 | 293 | |
0005011 | Pigeonite | Alvaro M, Nestola F, Ballaran T B, Camara F, Domeneghetti M C, Tazzoli V (2010) High-pressure phase transition of a natural pigeonite American Mineralogist 95 300-311 | 2010 | Parana, Brazil | 6.409 | 293 | |
0005012 | Pigeonite | Alvaro M, Nestola F, Ballaran T B, Camara F, Domeneghetti M C, Tazzoli V (2010) High-pressure phase transition of a natural pigeonite American Mineralogist 95 300-311 | 2010 | Parana, Brazil | 7.762 | 293 | |
0005013 | Pigeonite | Alvaro M, Nestola F, Ballaran T B, Camara F, Domeneghetti M C, Tazzoli V (2010) High-pressure phase transition of a natural pigeonite American Mineralogist 95 300-311 | 2010 | Parana, Brazil | 9.405 | 293 | |
0007018 | Pigeonite | Merli M, Camara F (2003) Topological analysis of the electron density of the clinopyroxene structure by the maximum entropy method: an exploratory study European Journal of Mineralogy 15 903-911 | 2003 | 0 | 293 | ||
0007019 | Pigeonite | Merli M, Camara F (2003) Topological analysis of the electron density of the clinopyroxene structure by the maximum entropy method: an exploratory study European Journal of Mineralogy 15 903-911 | 2003 | 0 | 293 | ||
0008137 | Pigeonite | Angel R J, McCammon C A, Woodland A B (1998) Structure, ordering and cation interactions in Ca-free P2_1/c clinopyroxenes Physics and Chemistry of Minerals 25 249-258 | 1998 | 0 | 293 | ||
0008637 | Pigeonite | Camara F, Carpenter M A, Domeneghetti M C, Tazzoli V (2002) Non-convergent ordering and displacive phase transition in pigeonite: in situ HT XRD study Physics and Chemistry of Minerals 29 331-340 | 2002 | 0 | 298 | ||
0008638 | Pigeonite | Camara F, Carpenter M A, Domeneghetti M C, Tazzoli V (2002) Non-convergent ordering and displacive phase transition in pigeonite: in situ HT XRD study Physics and Chemistry of Minerals 29 331-340 | 2002 | 0 | 923 | ||
0008639 | Pigeonite | Camara F, Carpenter M A, Domeneghetti M C, Tazzoli V (2002) Non-convergent ordering and displacive phase transition in pigeonite: in situ HT XRD study Physics and Chemistry of Minerals 29 331-340 | 2002 | 0 | 1023 | ||
0008640 | Pigeonite | Camara F, Carpenter M A, Domeneghetti M C, Tazzoli V (2002) Non-convergent ordering and displacive phase transition in pigeonite: in situ HT XRD study Physics and Chemistry of Minerals 29 331-340 | 2002 | 0 | 1123 | ||
0008641 | Pigeonite | Camara F, Carpenter M A, Domeneghetti M C, Tazzoli V (2002) Non-convergent ordering and displacive phase transition in pigeonite: in situ HT XRD study Physics and Chemistry of Minerals 29 331-340 | 2002 | 0 | 1223 | ||
0010588 | Pigeonite | Morimoto N, Appleman D E, Evans H T (1960) The crystal structures of clinoenstatite and pigeonite Zeitschrift fur Kristallographie 114 120-147 | 1960 | Asio Mine, Japan | 0 | 293 |
CIF Raw Data - click here to close
X-Ray Powder Diffraction
Powder Diffraction Data:
d-spacing | Intensity |
---|---|
3.0207 Å | (100) |
2.9035 Å | (100) |
3.2101 Å | (80) |
2.9080 Å | (80) |
2.5783 Å | (60) |
1.6265 Å | (60) |
1.4935 Å | (60) |
1.3912 Å | (60) |
2.1457 Å | (40) |
2.0449 Å | (40) |
Comments:
Yumoto, Hakone volcano, Japan. Data from Kuno and Hess (1953).
Geological Environment
Paragenetic Mode(s):
Paragenetic Mode | Earliest Age (Ga) |
---|---|
Stage 1: Primary nebular phases | 4.567-4.561 |
4 : Primary chondrule phases | 4.566–4.561 |
Stage 2: Planetesimal differentiation and alteration | 4.566-4.550 |
5 : Primary asteroid phases | 4.566–4.560 |
Stage 3a: Earth’s earliest Hadean crust | >4.50 |
8 : Mafic igneous rocks | |
Stage 4a: Earth’s earliest continental crust | >4.4-3.0 |
20 : Acidic volcanic rocks | |
Stage 4b: Highly evolved igneous rocks | >3.0 |
37 : Layered igneous intrusions and related PGE minerals | |
Stage 5: Initiation of plate tectonics | <3.5-2.5 |
40 : Regional metamorphism (greenschist, amphibolite, granulite facies) |
Type Occurrence of Pigeonite
Synonyms of Pigeonite
Other Language Names for Pigeonite
Varieties of Pigeonite
Ferriferous pigeonite | |
Intermediate pigeonite | An obsolete name for a pigeonite with at least 35% Mg and 35% Fe. |
Magnesian pigeonite | An obsolete name for a pigeonite with less than 35% Fe. |
Relationship of Pigeonite to other Species
Member of:
Other Members of this group:
Aegirine | NaFe3+Si2O6 | Mon. 2/m : B2/b |
Aegirine-augite | (NaaCabFe2+cMgd)(Fe3+eAlfFe2+gMgh)Si2O6 | Mon. 2/m : B2/b |
Augite | (CaxMgyFez)(Mgy1Fez1)Si2O6 | Mon. 2/m : B2/b |
Burnettite | CaVAlSiO6 | Mon. 2/m : B2/b |
Clinoenstatite | MgSiO3 | Mon. 2/m : P21/b |
Clinoferrosilite | Fe2+2Si2O6 | Mon. 2/m : P21/b |
Colomeraite | NaTi3+Si2O6 | Mon. 2/m : B2/b |
Davisite | CaScAlSiO6 | Mon. 2/m : B2/b |
Diopside | CaMgSi2O6 | Mon. 2/m : B2/b |
Esseneite | CaFe3+[AlSiO6] | Mon. 2/m : B2/b |
Grossmanite | CaTi3+ AlSiO6 | Mon. 2/m : B2/b |
Hedenbergite | CaFe2+Si2O6 | Mon. 2/m : B2/b |
Jadeite | Na(Al,Fe3+)Si2O6 | Mon. 2/m : B2/b |
Jervisite | NaSc3+Si2O6 | Mon. 2/m : B2/b |
Johannsenite | CaMn2+Si2O6 | Mon. 2/m : B2/b |
Kanoite | Mn2+(Mg,Mn2+)Si2O6 | Mon. 2/m : P21/b |
Kosmochlor | NaCrSi2O6 | Mon. 2/m : B2/b |
Kushiroite | CaAl[AlSiO6] | Mon. 2/m : B2/b |
Namansilite | NaMn3+Si2O6 | Mon. 2/m : B2/b |
Natalyite | NaV3+Si2O6 | Mon. 2/m : B2/b |
Omphacite | (NaaCabFe2+cMgd)(AleFe3+fFe2+gMgh)Si2O6 | Mon. 2/m |
Petedunnite | Ca(Zn,Mn2+,Mg,Fe2+)Si2O6 | Mon. 2/m : B2/b |
Ryabchikovite | CuMgSi2O6 | Mon. 2/m : P21/b |
Spodumene | LiAlSi2O6 | Mon. 2/m : B2/b |
Tissintite | (Ca,Na,◻)AlSi2O6 | Mon. 2/m : B2/b |
UM2001-19-SiO:AlCaMgNa | (Na,Mg,Ca)(Mg,Al)Si2O6 | Mon. 2/m : B2/b |
UM2003-36-SiO:CaNa | NaCrSi2O6 - CaMgSi2O6 | Mon. 2/m : B2/b |
Common Associates
Associated Minerals Based on Photo Data:
5 photos of Pigeonite associated with Maskelynite | |
4 photos of Pigeonite associated with Augite | (CaxMgyFez)(Mgy1Fez1)Si2O6 |
4 photos of Pigeonite associated with Basaltic shergottite meteorite | |
3 photos of Pigeonite associated with Plagioclase | (Na,Ca)[(Si,Al)AlSi2]O8 |
2 photos of Pigeonite associated with Shergottite meteorite | |
2 photos of Pigeonite associated with Anorthite | Ca(Al2Si2O8) |
1 photo of Pigeonite associated with Rutile | TiO2 |
1 photo of Pigeonite associated with Chromite | Fe2+Cr3+2O4 |
1 photo of Pigeonite associated with Chlorapatite | Ca5(PO4)3Cl |
1 photo of Pigeonite associated with Periclase | MgO |
Related Minerals - Strunz-mindat Grouping
9.DA. | Protoenstatite | Mg2Si2O6 |
9.DA. | Ryabchikovite | CuMgSi2O6 |
9.DA. | Colomeraite | NaTi3+Si2O6 |
9.DA.05 | Donpeacorite | (Mn,Mg)MgSi2O6 |
9.DA.05 | Enstatite | Mg2Si2O6 |
9.DA.05 | Ferrosilite | Fe2+2Si2O6 |
9.DA.10 | Clinoenstatite | MgSiO3 |
9.DA.10 | Clinoferrosilite | Fe2+2Si2O6 |
9.DA.10 | Kanoite | Mn2+(Mg,Mn2+)Si2O6 |
9.DA.15 | Augite | (CaxMgyFez)(Mgy1Fez1)Si2O6 |
9.DA.15 | Diopside | CaMgSi2O6 |
9.DA.15 | Esseneite | CaFe3+[AlSiO6] |
9.DA.15 | Hedenbergite | CaFe2+Si2O6 |
9.DA.15 va | Jeffersonite | Ca(Mn,Zn,Fe)Si2O6 |
9.DA.15 | Johannsenite | CaMn2+Si2O6 |
9.DA.15 | Petedunnite | Ca(Zn,Mn2+,Mg,Fe2+)Si2O6 |
9.DA.15 | Davisite | CaScAlSiO6 |
9.DA.15 | Kushiroite | CaAl[AlSiO6] |
9.DA.15 | Grossmanite | CaTi3+ AlSiO6 |
9.DA.20 | Aegirine-augite | (NaaCabFe2+cMgd)(Fe3+eAlfFe2+gMgh)Si2O6 |
9.DA.20 | Omphacite | (NaaCabFe2+cMgd)(AleFe3+fFe2+gMgh)Si2O6 |
9.DA.25 | Aegirine | NaFe3+Si2O6 |
9.DA.25 | Jadeite | Na(Al,Fe3+)Si2O6 |
9.DA.25 | Jervisite | NaSc3+Si2O6 |
9.DA.25 | Kosmochlor | NaCrSi2O6 |
9.DA.25 | Namansilite | NaMn3+Si2O6 |
9.DA.25 | Natalyite | NaV3+Si2O6 |
9.DA.25 | Tissintite | (Ca,Na,◻)AlSi2O6 |
9.DA.30 | Spodumene | LiAlSi2O6 |
9.DA.35 | Hiroseite | FeSiO3 |
Other Information
Health Risks:
No information on health risks for this material has been entered into the database. You should always treat mineral specimens with care.
Pigeonite in petrology
An essential component of rock names highlighted in red, an accessory component in rock names highlighted in green.
Internet Links for Pigeonite
mindat.org URL:
https://www.mindat.org/min-3210.html
Please feel free to link to this page.
Please feel free to link to this page.
Search Engines:
External Links:
Mineral Dealers:
References for Pigeonite
Localities for Pigeonite
Locality List
- This locality has map coordinates listed.
- This locality has estimated coordinates.
ⓘ - Click for references and further information on this occurrence.
? - Indicates mineral may be doubtful at this locality.
- Good crystals or important locality for species.
- World class for species or very significant.
(TL) - Type Locality for a valid mineral species.
(FRL) - First Recorded Locality for everything else (eg varieties).
Struck out - Mineral was erroneously reported from this locality.
Faded * - Never found at this locality but inferred to have existed at some point in the past (e.g. from pseudomorphs).
All localities listed without proper references should be considered as questionable.
All localities listed without proper references should be considered as questionable.
Algeria | |
| www.lpi.usra.edu (2020) |
| Hutchison et al. (1991) |
| Krot et al. (2004) |
| ... |
| Lustrino et al. (2016) |
| www.lpi.usra.edu (2020) |
Antarctica | |
| Meyer (2001) |
| Ruzicka et al. (1999) |
Swindle (2001) | |
Semenova et al. (1992, March) | |
| Antarctic Meteorite Working Group (1984) +1 other reference |
| Ikeda Yukio (1988) |
Itoh et al. (2003) | |
| Satterwhite et al. (2007) +1 other reference |
| A. J. Brearley (1990) |
Ikeda (1994) | |
Brearley et al. (1998) | |
| Prinz et al. (1987) +3 other references |
Antarctic Meteorite Newsletter 3 (3) +2 other references | |
Meteoritical Bulletin (Aug. 2000) | |
| Score et al. (1995) +3 other references |
| Thomson (1974) |
Argentina | |
| Mason B. et al. (1979) |
| Mason (1967) |
Armenia | |
| Nazarov et al. (1993) |
Australia | |
| Lovering (1975) |
| American Mineralogist 64 (1979) |
| Mason (1967) |
| Mason B. et al. (1979) |
| |
| Ikeda et al. (1996) +1 other reference |
| Brian Mason (1962) |
| Floran et al. (1978) |
| Ruzicka et al. (1999) |
| R Bottrill 2010 |
| Taheri |
| Bottrill et al. (2008) |
| R Bottrill collection |
| McDougall (1961) |
| Formation of Platiniferous Sulfide ... +1 other reference |
| New Stony Meteorite Finds Inlcuding Two ... +1 other reference |
| Fetherston (2010) |
| Palme et al. (1988) |
| New Stony Meteorite Finds Including Two ... +2 other references |
New Stony Meteorite Finds Including Two ... +2 other references | |
Am Min 67:126-131 | |
| McCall et al. (1966) +2 other references |
| www.meteorites.com.au +1 other reference |
| New Material From +1 other reference |
Bangladesh | |
| Powell (1971) +1 other reference |
Belarus | |
| Mason B. (1979) |
Brazil | |
| Cid et al. (2014) |
| Keil et al. (1978) |
| Gomes et al. (1980) +1 other reference |
| Steele et al. (1976) |
| Atencio et al. (2020) |
| Mason (1967) +1 other reference |
| Pinto V. et al. (2011) |
| Comin-Chiaramonti et al. (2008) |
Bulgaria | |
| I. Kostov et al. (1964) |
Burkina Faso | |
| Mason (1967) |
Canada | |
| Papezik et al. (1981) |
| D. H. Watkinson and G. Dunning v (1979) |
| Olivier Langelier Collection |
Central African Republic | |
| Hoinkes et al. (1975) |
Chad | |
| Reynolds et al. (Tripoli) +4 other references |
Chile | |
| www.lpi.usra.edu (2010) |
Kimura et al. (1991) +1 other reference | |
China | |
| Kuiren Wang and Junxin Wang (1987) |
| Martin et al. (2004) +3 other references |
| Brizi et al. (2003) |
| Wankang Huang et al. (1978) |
| Wang et al. (2009) |
Croatia | |
| Balogh et al. (1994) +2 other references |
| Hoinkes et al. (1976) |
Czech Republic | |
| Mason (1962) |
| von Engelhardt (1963) |
Ecuador | |
| sulfide mounds et al. (3) +1 other reference |
Egypt | |
| Rull et al. (2004) |
Finland | |
| Matist |
| Gustafsson et al. (2019) |
| Mason (1967) +1 other reference |
| Gennady P. Vdovykin (1972) |
France | |
| Takeda et al. (1974) +2 other references |
| M. Christophe Michel-Lévy |
| C. Lemanski (re-entry of lost Mindat data) |
| Chauris (2014) |
| Dodd et al. (1976) |
| |
| Hewins (2014) +1 other reference |
| Mason B. (1979) |
| Mason (1967) |
| B. Azambre and P. Monchoux |
| Dill (2008) |
Germany | |
| Habel (2009) |
| Ehrenberg et al. (1981) +6 other references |
| Oehm et al. (1983) +6 other references |
| |
| BLAß et al. (1995) |
| El-Kaluoby |
Greenland | |
| Contrib.Mineral Petrol (1981) |
| Whyatt +5 other references |
| Thomassen et al. (2006) +1 other reference |
Hungary | |
| Society of Economic Geologists Student Chapter University of Miskolc (2018) |
| Kohút et al. (2019) |
| Mineral Species of Hungary |
| Szakáll & Gatter |
| Szakáll & Gatter |
Iceland | |
| Carmichael et al. (1967) |
India | |
| Ghosh et al. (2000) |
| Gennady P. Vdovykin (1970) +1 other reference |
| Treiman (1985) +2 other references |
| Jones (1990) +1 other reference |
| Mason (1967) +1 other reference |
| Meteoritics & Planetary Science 40 et al. (2005) |
| Mason B. et al. (1979) |
| Tripathi et al. (2000) |
| Shukla et al. (1997) |
| Jones (1996) |
| Mason (1967) +2 other references |
N. Bhandari (1981) | |
| Töpel-Schadt et al. (1979) +2 other references |
| Gennady P. Vdovykin (1970) |
Indonesia | |
| Mason (1962, May 24th) |
| Abdurrachman et al. (2012) |
Italy | |
| Piccoli et al. (2007) |
| Mason (1962) +1 other reference |
| Tonarini et al. (1996) +9 other references |
| Analized by Marco Ciriotti |
| Pichler (1980) |
| Calanchi et al. (1989) +1 other reference |
Peccerillo (2017) | |
Japan | |
| Masaru Yamaguchi (1964) |
| Deer et al. (1963) |
| Alfredo Petrov collection |
| Masaru Yamaguchi (1964) |
| Kushiro (1964) |
Kazakhstan | |
| Krot et al. (2002) |
Kenya | |
| Coetzee et al. (1959) |
Libya | |
| Grady et al. (2015) |
Geochimica et Cosmochimica Acta | |
Meteoritical Bulletin 84 (Aug.2000) +1 other reference | |
Grossman et al. (2000) | |
Russell et al. (2003) +3 other references | |
- (n.d.) | |
Lithuania | |
| Mason B. (1979) |
| Bukovanská et al. (1991) |
Mauritania | |
| - (n.d.) |
| Lomena et al. (1976) +1 other reference |
Mexico | |
| Brearley et al. (1998) |
| Duke et al. (1967) +1 other reference |
| Cervantes-de La Cruz (2007) |
| Dunn et al. (2010) |
Mongolia | |
| I. Weber & Adolf Bischoff (1999) |
Montserrat | |
Montserrat Volcano Observatory | |
Morocco | |
| Connolly et al. (2007) +2 other references |
| Bell et al. (2008) |
| Irving +1 other reference |
Namibia | |
| Ewart et al. (1998) |
New Zealand | |
| Brothers et al. (1981) |
Brothers et al. (1981) | |
Brothers et al. (1981) | |
| ganko.eps.nagoya-u.ac.jp (n.d.) |
Nigeria | |
| Mason (1967) +1 other reference |
| T.J. McCoy +2 other references |
North Africa | |
| Owocki et al. (2012) |
Northwest Africa | |
Meteoritical Bulletin et al. (2004) | |
Northwest Africa Meteorites | |
Meteoritical Bulletin et al. (2001) | |
Goodrich (2002) +1 other reference | |
Russell et al. (2003) +1 other reference | |
Irving et al. (2003, March) | |
www2.jpl.nasa.gov/snc/news51.html | |
Moggi-Cecchi et al. (2007) | |
T. Bunch and J. Wittke | |
He et al. (2010) | |
... | |
The Meteoritical Bulletin | |
Barrat et al. (2001) | |
www.lpi.usra.edu (2013) | |
Dr. Vivian Gornitz (2013) +1 other reference | |
www.lpi.usra.edu (2010) | |
Met. Bull. | |
Jambon et al. (2002) +1 other reference | |
www.lpi.usra.edu (2015) +5 other references | |
Szurgot et al. (2009) +1 other reference | |
... | |
Irving et al. (2002) | |
Oman | |
| Hutchison (1977) +1 other reference |
| Meteoritical Bulletin et al. (2000) |
Ivanova et al. (2003, March) | |
Geophysical Research Abstracts | |
| Taylor et al. (2000) |
Greshake et al. (2001) | |
Yukio et al. (2006) | |
Meteoritical Bulletin et al. (2003) | |
Russell (2005) | |
Russell et al. (2002) +1 other reference | |
Pakistan | |
| Klaus Keil & Christian A. Andersen (1965) |
Papua New Guinea | |
| Hewins (1979) |
| Lowder (1970) |
Philippines | |
| Miklius et al. (1991) |
Poland | |
| Włodyka et al. (2015) |
| Lis et al. (1986) |
| Lis et al. (1986) |
| Powell (1971) +1 other reference |
| Mason (1967) +2 other references |
Portugal | |
| Mason B. (1979) |
Romania | |
| www.gl.rhbnc.ac.uk (2003) |
| Szakáll |
Szakáll et al. (2010) | |
| Fuchs (1968) |
Russia | |
| Sklyarov et al. (2016) |
Sklyarov et al. (2016) | |
| Spiridonov et al. (2019) +1 other reference |
| Sklyarov et al. (2023) |
| Grossman et al. (1986) |
| Hsu et al. (1996) +1 other reference |
| Kokh et al. (2023) |
| Sokol et al. (2019) |
| Frank K. Mazdab collection (see https://www.rockptx.com/fkm-226-to-fkm-250/#FKM-226 for normalized analyses) |
| Korsakov et al. (2019) |
| Rosenshein et al. (2006) |
| Gennady P. Vdovykin (1970) |
| |
| Kaulina et al. (2023) |
Smol’kin et al. (2023) | |
| Khisina et al. (1982) |
| Коневин et al. (2020) |
| Mason B. (1979) |
| Kasatkin et al. (2021) |
| David A. Kring (1987) |
Saint Lucia | |
| M. Le Guen de Kerneizon et al. |
Saint Vincent and the Grenadines | |
| Journal of Petrology 10:1721-1764 +1 other reference |
Slovakia | |
| Koděra (1986) |
| Duda et. all. |
South Africa | |
| Simpson (1975) |
| Reid (1974) +1 other reference |
| McDonald et al. (2017) +1 other reference |
| Cairncross et al. (1995) |
| Kottke-Levin (2011) |
| Econ Geol (1986) |
Klemd +6 other references | |
South Korea | |
| Lee et al. (2022) |
| Kim +7 other references |
South Sudan | |
| Duke (1967) |
Spain | |
| B. Azambre et al. +1 other reference |
| B. Azambre et al. +1 other reference |
| B. Azambre et al. +1 other reference |
| B. Azambre et al. +1 other reference |
B. Azambre et al. +1 other reference | |
| Orejana et al. (2024) |
| Rull et al. (2010) |
| Rull et al. (2010) |
| Dunn et al. (2010) |
| Rull et al. (2010) |
| Weibel (1955) |
Sudan | |
| Barbaro +9 other references |
Sweden | |
| S.Hjelmqvist: The titaniferous iron-ore ... |
| Dodd (June 1974) |
| Sandström et al. (2009) |
Gatedal (n.d.) | |
| |
Tanzania | |
| Mason (1967) +1 other reference |
Tonga | |
| Bauer (1970) |
| Park et al. (2015) |
| Johnstone (1980) |
Turkmenistan | |
| Ivanova et al. (1992) |
UK | |
| Golley et al. (1995) |
| Ruzicka et al. (1995) +1 other reference |
| ... +1 other reference |
B.G.J. Upton et al. | |
| Emeleus et al. (1992) |
| ... |
Ukraine | |
| Ian D. Mackinnon & Peter R. Buseck (1980) |
| Mason B. (1979) |
| Mason B. (1979) |
USA | |
| Cook et al. (1982) |
| Duke (1967) |
Cook et al. (1982) | |
| Butler et al. (1938b) +1 other reference |
| Meteoritics & Planetary Science 36 (2001) |
| curator.jsc.nasa.gov (2013) |
| Spry et al. (2021) |
| Gibson et al. (1977) |
| Takeda et al. (1982) |
Gillson (1926) | |
| Cook (1978) |
| The Leeward Islands. American Journal of Science (70) +6 other references |
| ... +2 other references |
| Powell (1971) |
| Russell et al. (2003) |
| Grossman (1997) |
| Dod et al. (1985) |
| Pavlides |
Pavlides | |
Pavlides | |
Pavlides | |
| King et al. (1994) |
| Mason (1967) +2 other references |
| King et al. (1994) |
| Dennen |
| Gillson (1926) |
| Heinrich et al. (2004) |
... | |
Heinrich et al. (2004) | |
Heinrich et al. (2004) | |
... | |
| Heinrich et al. (2004) |
| A. N. Winchell +1 other reference |
| Harvard Museum of Natural History |
| Lee et al. (1995) |
| USGS Open-File Report 89-76 |
| USGS Miscellaneous Field Studies Map ... |
| Corkery (2002) |
| Mason (1967) +2 other references |
| Castor et al. (2004) |
| Castor et al. (2004) |
| adsabs.harvard.edu (n.d.) |
| Northrop et al. (1996) |
| Geochimica et Cosmochimica Acta |
| Northrop et al. (1996) |
| Foshag (1938) +6 other references |
Morimoto et al. (1969) | |
| Duke (1967) +1 other reference |
| Dunn et al. (2010) |
| Mineralogical Record (2) |
| Lapham & Geyer |
Eckel et al. (1997) | |
| Mayne et al. (2009) |
| Mason (1967) +2 other references |
| Rubin et al. (2005) |
| Jackson et al. (1988) |
| Ferraris et al. (2002) |
| Hewins (1981) +1 other reference |
| Woolley (1987) |
| www.excaliburmineral.com +2 other references |
| Dietrich (1990) |
Dietrich (1990) | |
| Dietrich (1990) |
| Rocks&Min. 47:596 (1972) |
| |
| www.uwrf.edu/~wc01 |
Klewin +1 other reference | |
| Myers et al. (1980) |
| Frost et al. (eds.) |
Uzbekistan | |
| ... |
Vanuatu | |
| Coulon et al. (New Hebrides) |
Western Sahara | |
| Meteoritical Society Abstracts (2001) |
Yemen | |
| Zolensky et al. (2003) |
Zimbabwe | |
| Chaumba (2017) |
162173 Ryugu | |
Mars | |
| Grotzinger et al. (2015) +1 other reference |
| Jackson et al. (2016) |
| Several papers on: Science Express |
Grotzinger et al. (2015) | |
Grotzinger et al. (2015) | |
Grotzinger et al. (2015) | |
The Moon | |
| Walker et al. (1973) +1 other reference |
| Vinogradov (1971) |
| Clark et al. (1971) |
| Baldridge +3 other references |
| Longhi et al. (1974) |
Quick NavTopAbout PigeoniteUnique IdentifiersClassification IMA Classification Mineral SymbolsPronunciation Physical Properties Optical Data Chemistry Crystallography Crystal StructureX-Ray Powder DiffractionGeological EnvironmentType Occurrence SynonymsOther LanguagesVarietiesRelationshipsCommon AssociatesStrunz-MindatOther InformationPigeonite in petrologyInternet Links References Localities Locality List
Gåsgruvan Quarry, Persberg ore district, Filipstad, Värmland County, Sweden
